Wh-E36 57mm 44mm Micro DOT Matrix Printer with Serial RS-232 485 Ttl Parallel Interface for Receipt Barcode Billing Printing
WH-E36 DOT Matrix Thermal Panel printer with Serial RS232 485 TTL Parallel USB interface Features: - Dot matrix printer
Basic Info
Model NO. | WH-E36 |
Type | DOT Matrix Thermal Printer |
Automatic Two-sided Printing | Not Support Automatic Two-sided Printing |
Supply Paper Mode | Manual |
Interface Type | Serial RS-232, 485,Ttl / Parallel Interface |
Network Function | Wired Network |
Style | Black and White |
Consumable Type | Thermal Roll Paper |
Max. Paper Size | 57mm 44mm |
Character Structure | 6*8dots,6*12dots,8*16dots |
Print Speed | 50mm/S |
Paper out Detection | Paper End Sensors Function |
Resolution Ratio | 96dots/Line,144dots/Line,240dots/Line |
Outline Dimension | 107.4mm*61.4mm*66.2mm |
Installation Dimension | 102.4mm*56.4mm |
Input Power | DC 5V,10W/ DC 9-24V,30W |
Operating Temperature | 0°c~50°c |
Transport Package | Carton |
Specification | 25x30x25 |
Trademark | Brightek |
Origin | China |
Production Capacity | 1000000 |
Product Description
WH-E36 DOT Matrix Thermal Panel printer with Serial RS232 485 TTL Parallel USB interfaceFeatures:
- Dot matrix printer
- Stylish, delicate and elegant appearance
- Copy function of LCD
- Serial RS-232, 485,TTL / Parallel/ USB interface
- Abundant figure/ curves/ characters print function
- Plot rotation printing for expanded letter character set
Specification
Item | Specification | |
Printing method | Dot matrix printing method | |
Print width | 44mm/57mm | |
Print width | 32mm/48mm | |
Resolution ration | 96dots/line,144dots/line,240dots/line | |
Character per line | 16/24/40 | |
Printing speed | 1line/ sec,0.7line/sec,0.4line/sec | |
Character size | 6*8dots,6*12dots,8*16dots | |
Chinese character library | GB2312,12*12dots,16*16dots | |
Outline dimension | 107.4mm*61.4mm*66.2mm | |
Installation dimension | 102.4mm*56.4mm | |
Paper supplied | Plain paper(44mm/57mm,30mmΦ) | |
Interface | Serial RS-232,485,TTL/ Parallel/ USB | |
Input power | DC 5V,10W/ DC 9-24V,30W | |
Operation temperature | 0ºC~ 50ºC | |
Storage temperature | -20ºC~ 60ºC | |
Operation humidity | 10% ~ 85% | |
Storage humidity | 10% ~ 90% |

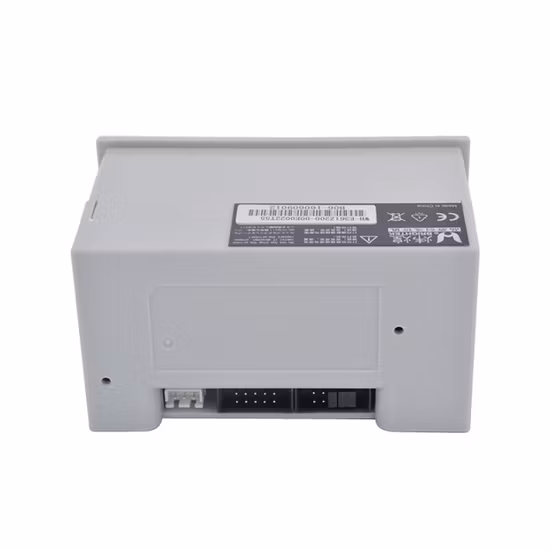

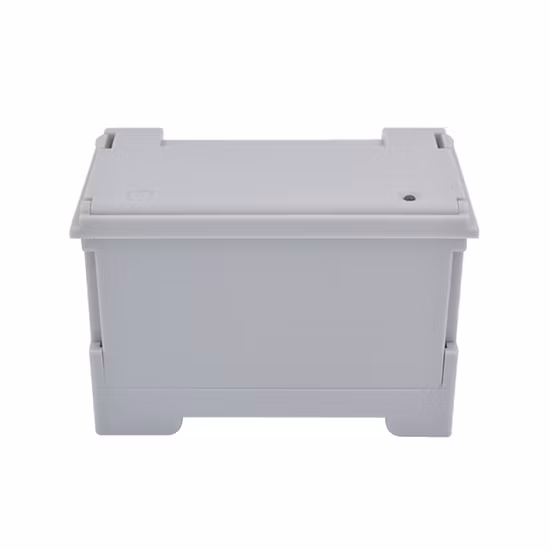

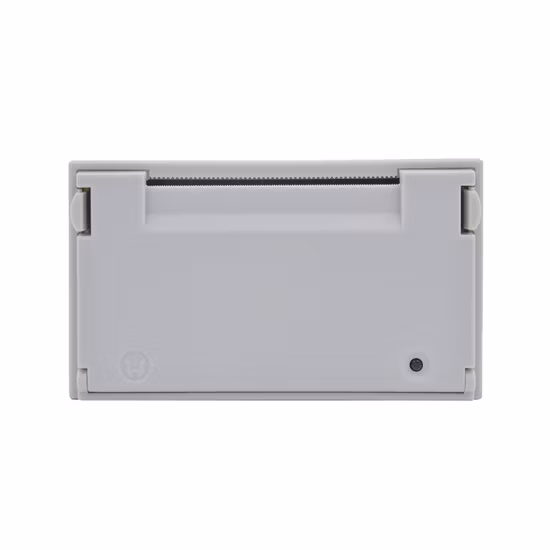

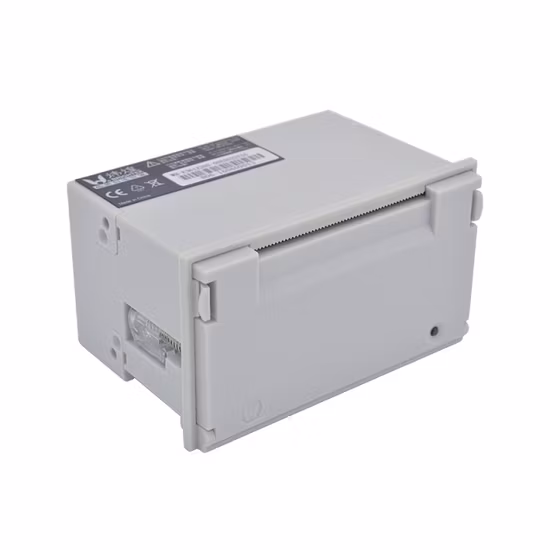

Product photos
