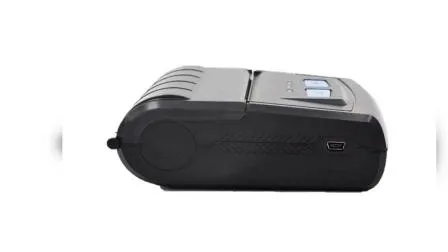

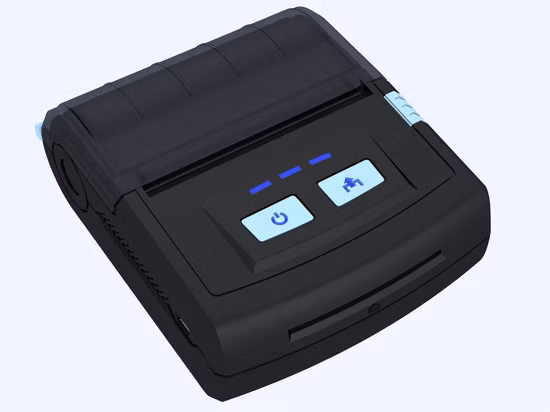

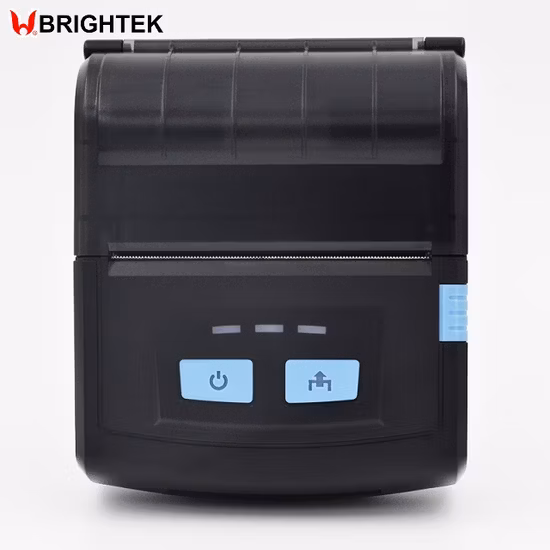

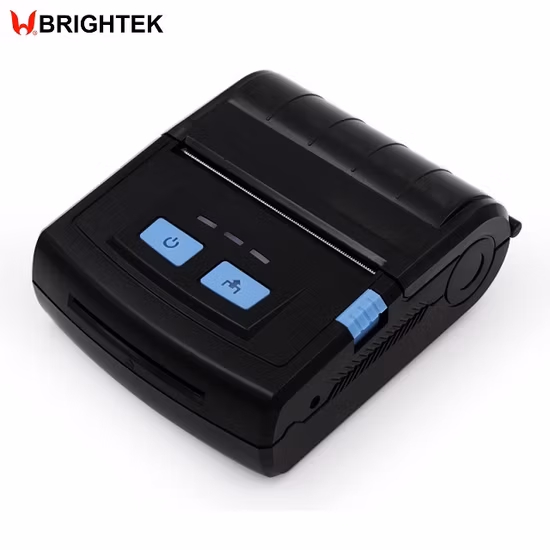

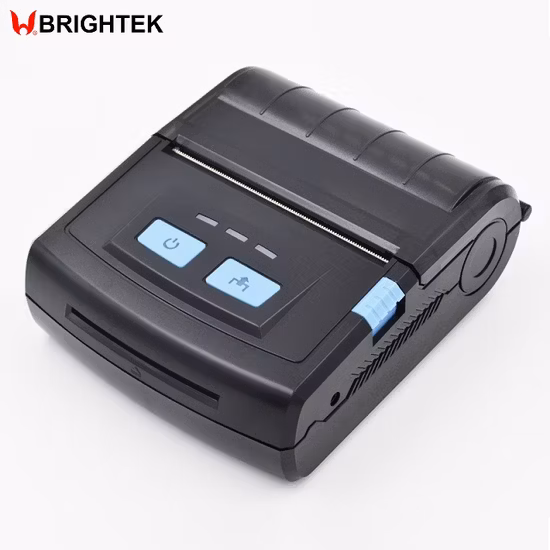

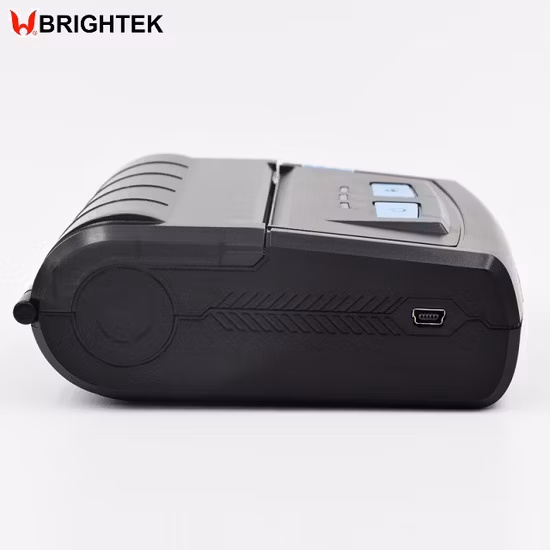

80mm Portable Mobile Handheld Thermal Receipt Printer with Interface USB/Bluetooth
Feature: - Outline dimension (123 x 100 x 46mm) - Very silent printing thru direct thermal printing method - High speed
Basic Info
Model NO. | WH-M08 |
Max. Paper Size | 80mm |
Character Structure | Full-width Characters Printers |
Printing Method | Direct Thermal Line Printing |
Paper out Detection | PE Sensors |
Paper Loading Way | Easy Paper Loading |
Resolution Ratio | 8 Dots/mm |
Life of Print Head | 50km |
Print Speed | 60mm/S |
Recharger | Input AC 100~240V, 1.0A; Output DC8.4V, 1.2A |
Battery | DC 7.4V(8.4V-6.8V), 1200mAh |
Transport Package | Carton |
Specification | ISO9001 |
Trademark | Brightek |
Origin | China |
HS Code | 8443321400 |
Production Capacity | 10000 Sets/Month |
Product Description
Feature:- Outline dimension (123 x 100 x 46mm)
- Very silent printing thru direct thermal printing method
- High speed (60mm/sec)
- High resolution(203dpi : 8dots/mm).
- USB / Bluetooth /Serial RS-232C / IC /Wifi
- Paper width ( 80mm )
- Support text and grahpic printing
- Easy paper loading
- Life of printing head ( 50km )
- Charge ( Input AC 100~240V, 1.0A; Output DC8.4V,1.2A )
- Battery ( DC7.4, 1300mAh )
Specification:
WH-M08 | |
Item | Specification |
Printing method | Direct thermal line printing |
Paper out detection | PE sensors |
Paper loading way | Easy paper loading |
Paper Width | 80 mm |
Resolution ratio | 8 dots/mm (384 dots/line, 576 dots/ line) |
Life of print head | 50km |
Print speed | 60mm/sec |
Charger | Input AC 100~240V, 1.0A; Output DC 8.4V, 1.2A |
Battery | DC 7.4V(8.4V~6.8V), 1200mAh / DC 7.4V(8.4V-6.8V),1300mAh |
Charging Time | 2 hours |
Outline dimensions | 100mm*46mm*123mm |
Paper supplied | Thermal paper roll (57mm width / 80mm width, 40mm diameter) |
Interface | Serial RS-232C/USB/Bluetooth/Wifi |
Temperature | Printer -10° C~50° C(14° F~122° F) |
Temperature | Battery 0° C~40° C (32° F~104° F) |
Humidity | Printer 10%~80% RH |
Humidity | Battery 10%~90% RH |
Mass storage | 8G SD |
Applications
Mobile POS, Field sales and service, Transportation, Hospitality, Parking, Utility billing, Safety, Material management.
