PRT Thermal Printer Mechanism PT48BE Compatible with Epson M-T173V

Basic Info

Model NO.	PT48BE
Consumable Type	Thermal Paper
Max. Paper Size	58mm
Certificate	RoHS
Transport Package	Packed in Carton
Specification	70.1 * 21.8 * 31.0mm
Trademark	PRT
Origin	Xiamen, China
HS Code	8443992100
Production Capacity	/

Product Description

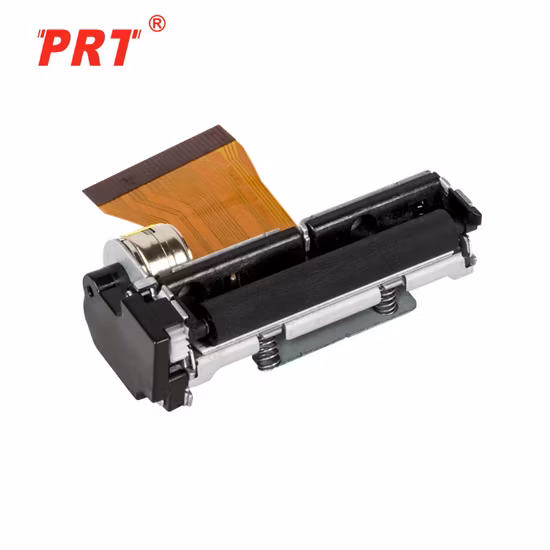

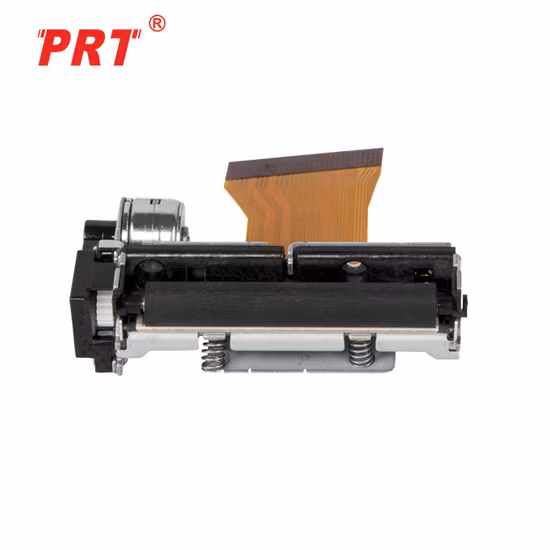

PRT Thermal Printer Mechanism PT48BE Compatible with Epson M-T173V
Features:
Low noise, sturdy and durable
Printing speed:90mm/s(8.5V)
Easy paper loading
Platen latch function
Curved paper path

Specification:

Print method	Thermal dot line printing
Dots per line	384 dots
Resolution	8 dots/mm
Print width	48 mm
Paper width	57.5±0.5mm
W * D * H(mm)	70.1 * 21.8 * 31.0
Weight	43g
Maximum printing speed	90 mm/s
Heater element pitch	0.125mm
Paper feed pitch	0.0625mm
Head temperature detection	Via thermistor
Out-of-paper detection	Via photo interrupter
Life span (at 25ºC and rated energy) Activation pulse resistance Abrasion resistance	100 million pulses or more (print ratio=12.5%) 50 km or more
Operating temperature range (ºC)	0~50
Operating humidity (RH)	20%~85%
Storage temperature range (ºC)	-25~+70
Storage humidity(RH)	5%~90%

Application:
Automotive VDR
Cash registers
EFT-POS terminals
Gas pumps
Portable terminals
Measuring instruments and analysers
Taximeters
